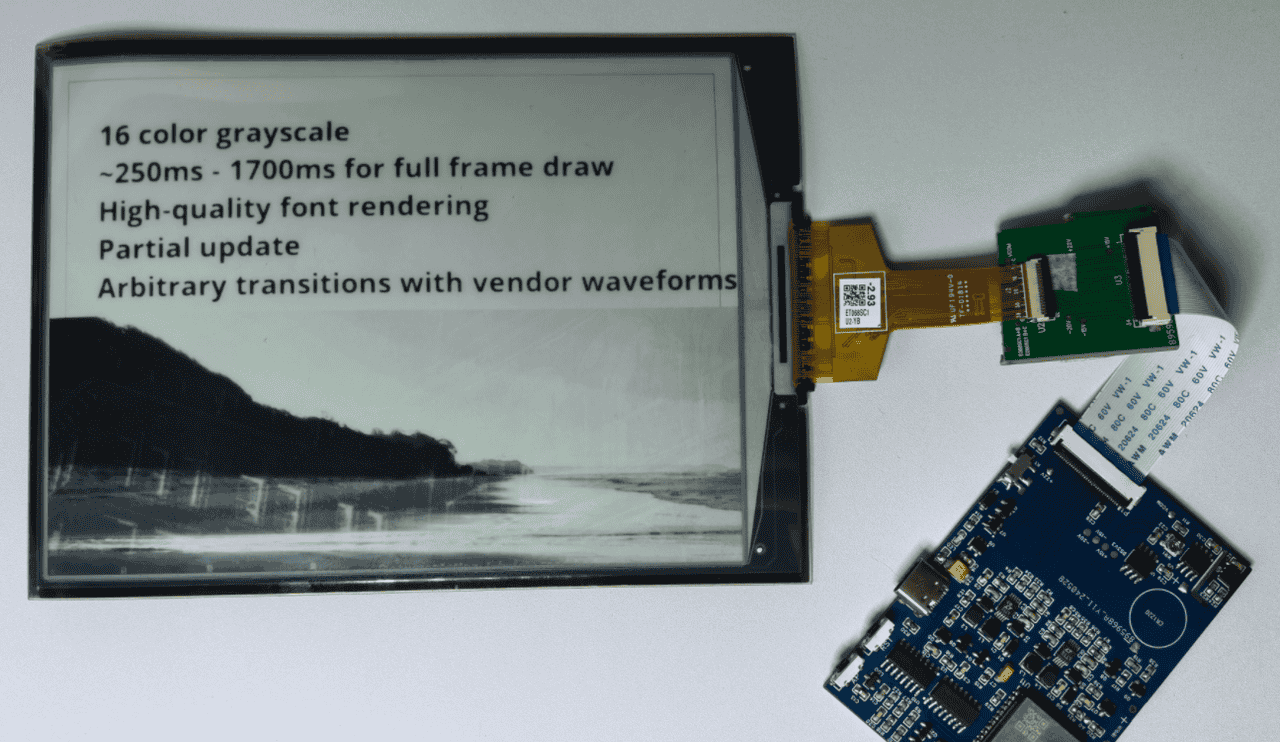

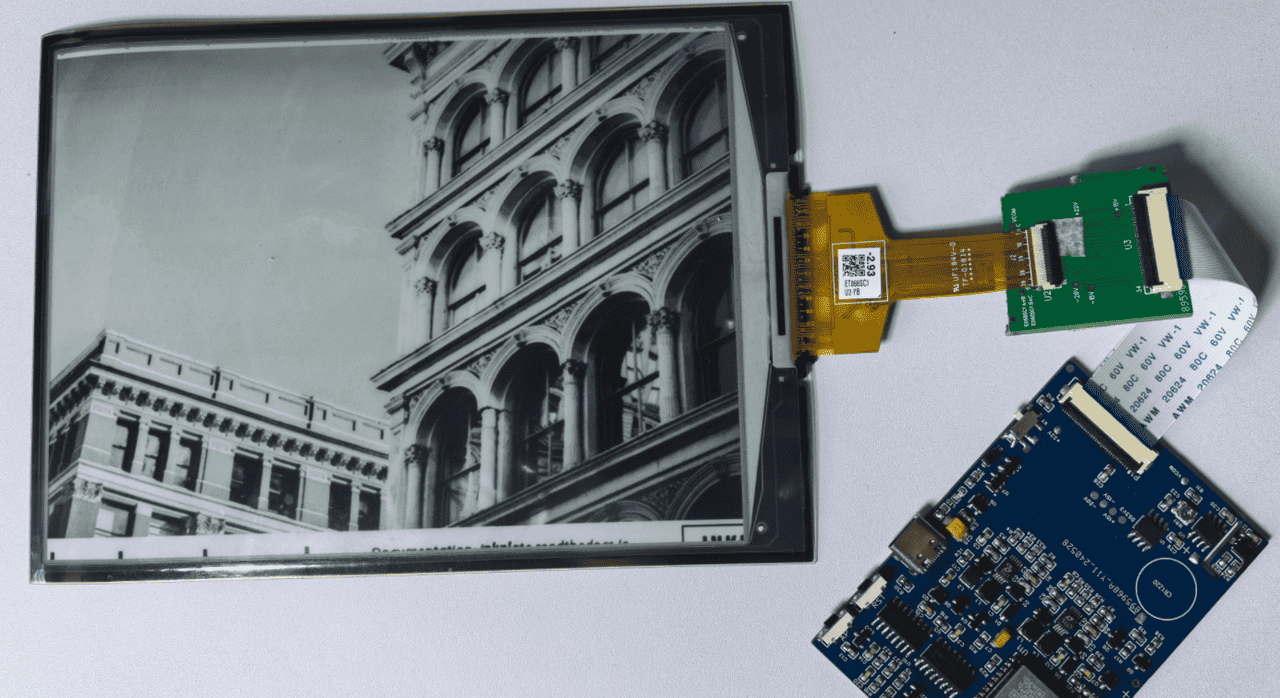

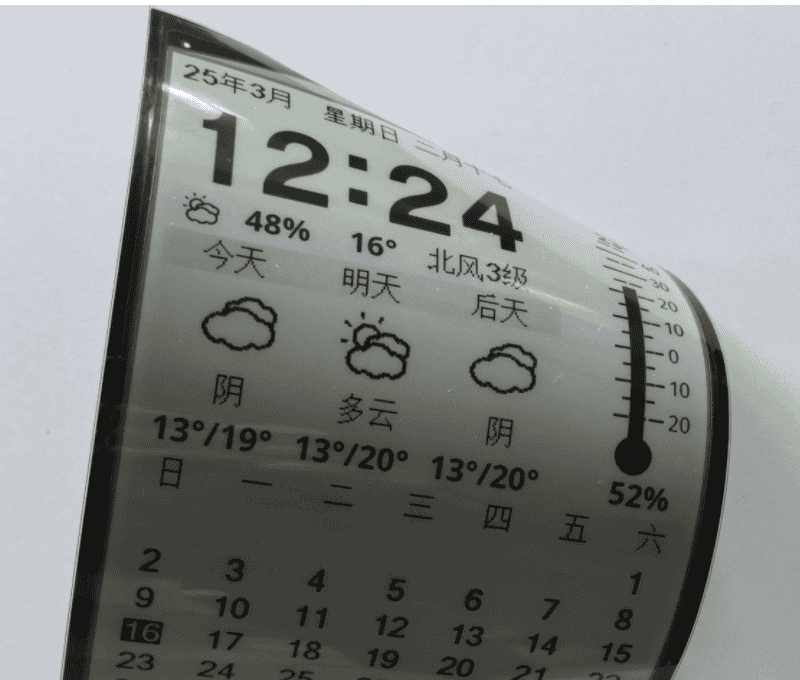

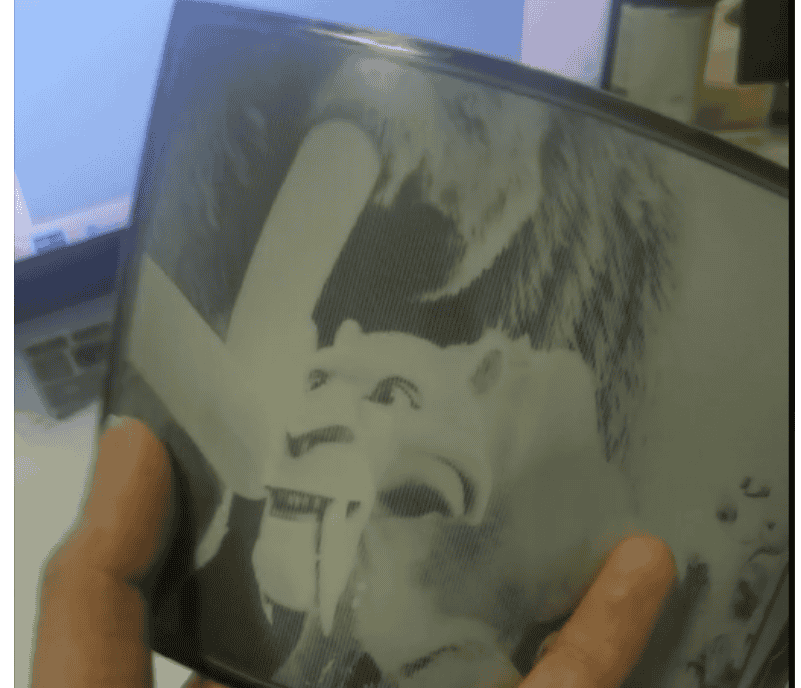

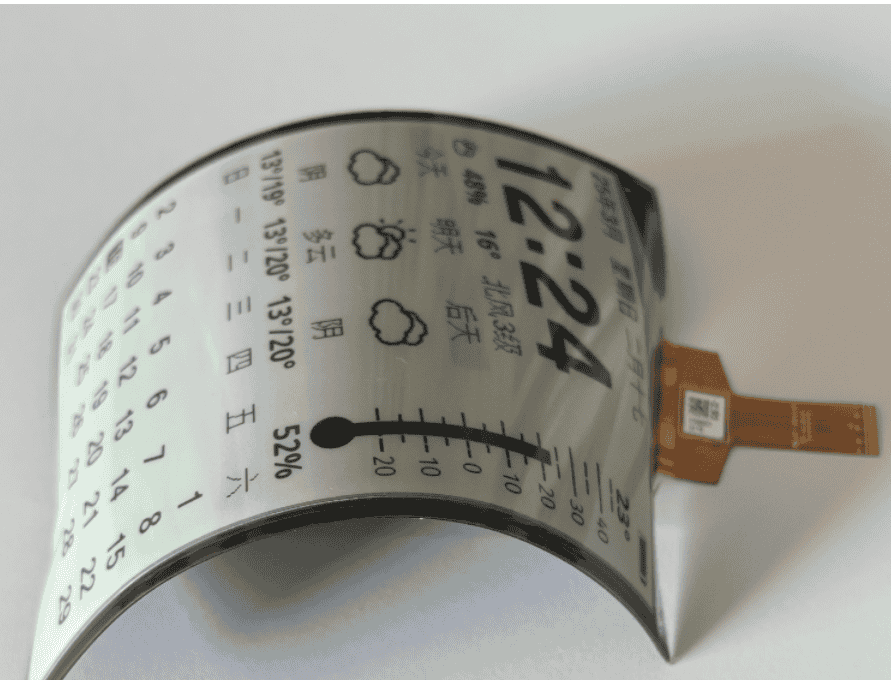

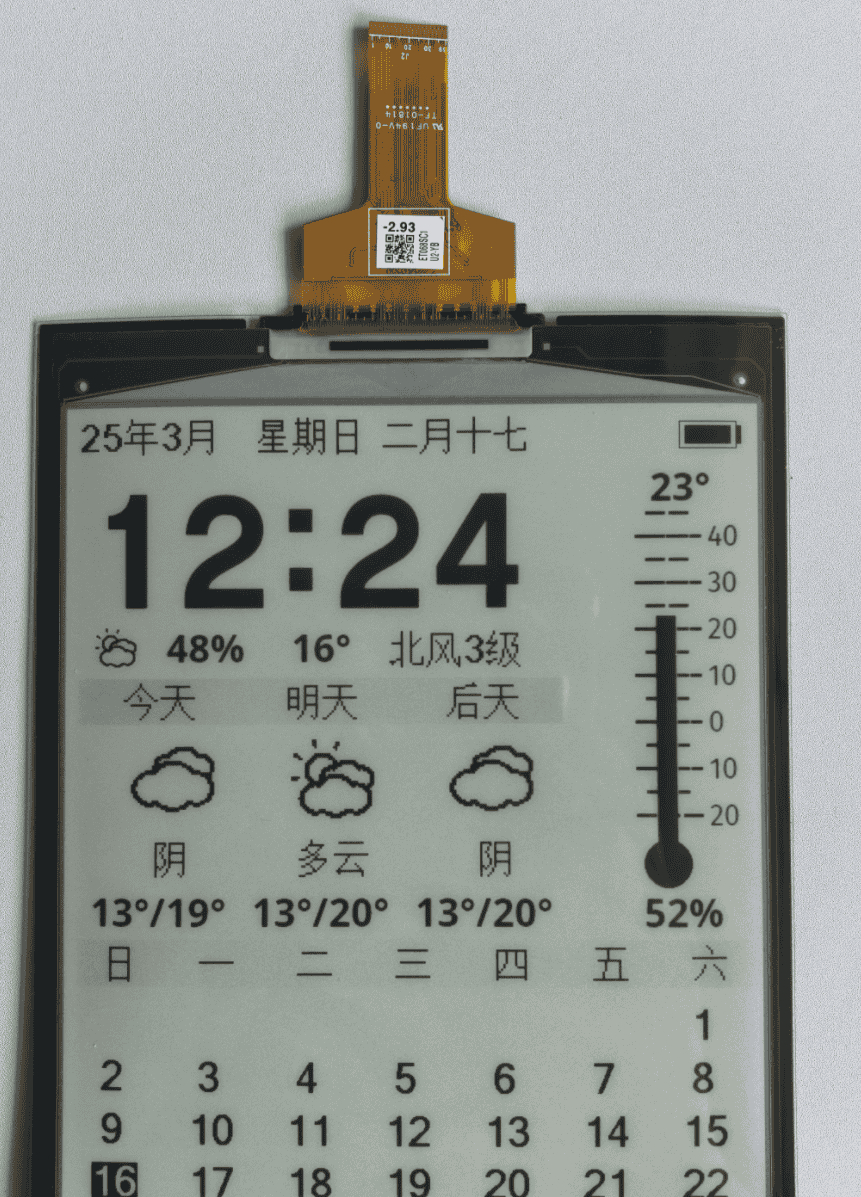

ET068SC1是一种柔性可弯曲的基于有源矩阵的反射式电泳E Ink技术显示模块它有极快的刷新，和丰富的色阶
非晶硅衬底。它有6.8英寸的活动区域，600 x 800像素，显示器能够显示
2-16灰度（1-4位）的图像取决于显示控制器和相关波形文件
它使用特征
高对比度反射/电泳技术
600 x 800显示器
高反射率
超宽视角
超低功耗
纯反射模式
双稳态
商业温度范围
3、机械规格
参数规格单位备注
屏幕尺寸：6.8英寸
显示分辨率：800（H）x 600（V）像素
有效面积：138（H）×103.5（V）mm
像素间距：0.1725（H）×0.1725（V）mm
像素配置方块
外形尺寸113.1（宽）×156.5（高）×0.845（深）mm，无PF
模块重量14.6+/-1.5 g，不带PF
灰度数16灰度级（单色）
显示操作模式反射模式
用85 Hz测量功耗的最大平均电流和最大电流
具有以下模式转换的波形：从黑白单棋盘格像素模式到反转
黑白单棋盘格像素图案（注6-1）
-使用85 Hz波形测量典型功耗，并进行以下模式转换：
从水平4灰度模式到垂直4灰度模式。。（注6-2）
-待机功率是面板控制器处于待机模式时消耗的功率。
-仅在控制器和波形下保证列出的电气/光学特性
由E Ink提供。
-建议将Vcom设置在赋值±0.1 V的范围内
-最大I COM涌入电流约为484 mA
ET068SC1 is a reflective electrophoretic E Ink® technology display module based on active matrix
amorphous silicon substrate. It has 6.8” active area with 600 x 800 pixels, the display is capable to display
images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file
it used.
2. Features
High contrast reflective/electrophoretic technology
600 x 800 display
High reflectance
Ultra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable
Commercial temperature range
Screen size: 6.8 inches
Display resolution: 800 (H) x 600 (V) pixels
Effective area: 138 (H) × 103.5 (V) mm
Pixel spacing: 0.1725 (H) × 0.1725 (V) mm
Pixel configuration block
Dimensions 113.1 (width) × 156.5 (height) × 0.845 (depth) mm, without PF
Module weight 14.6+/-1.5 g, without PF
Gray degree 16 gray level (monochrome)
Display Operation Mode Reflection Mode
Measure the maximum average current and maximum current of power consumption at 85 Hz
A waveform with the following mode conversion: from black and white single checkerboard pixel mode to reverse
Black and white single checkerboard pixel pattern (Note 6-1)
-Measure typical power consumption using an 85 Hz waveform and perform the following mode transitions:
From horizontal 4 grayscale mode to vertical 4 grayscale mode… (Note 6-2)
-Standby power refers to the power consumed by the panel controller when it is in standby mode.
-Ensure the listed electrical/optical characteristics only under the controller and waveform
Provided by E Ink.
-It is recommended to set the value of Vcom within the range of ± 0.1 V
-The maximum I COM inrush current is approximately 484 mA
